Our Product  >> Fabrication

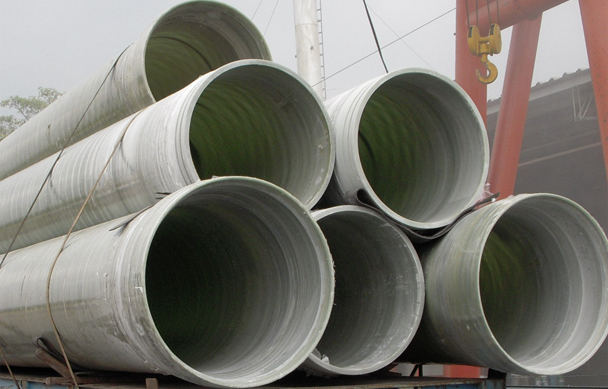

Our GRP pipe can be used in both pressurized and unpressurized applications and is excellent for a wide variety of high pressure lines. We use only the finest quality resins and glass fiber in our fiberglass piping and ducting systems. We are committed in providing the very best in our Glass Fiber Reinforced Thermosetting Plastics (GRP) piping systems available on the market today. We insure the utmost quality and integrity in all of our fiberglass products.
Class : PN 6, PN 10, PN 16
Type : A (SN 1250), B (SN 2500), C (SN 5000), D (SN 10000)
Nominal Dimension( ND ) Internal Diameter ( ID )
Max. (mm) Min. (mm) Tolerance (mm)
200
204
196
± 1.5
250
255
246
± 1.5
300
306
296
± 1.8
400
408
396
± 2.4
500
510
496
± 3.0
600
612
595
± 3.6
700
714
695
± 4.2
800
816
795
± 4.2
900
918
895
± 4.2
1000
1020
995
± 4.2
1200
1220
1195
± 5.0
1400
1420
1395
± 5.0
1400
1520
1455
± 5.0
1600
1620
1595
± 5.0
1800
1820
1795
± 5.0
2000
2020
1995
± 5.0
2200
2220
2195
± 5.0
2400
2420
2395
± 6.0
2500
2520
2495
± 6.0
2600
2620
2595
± 6.0


Note:-------------------------------------------------------------------------------------------------------------------------
(1) Design and manufacture can be
carried out according to customer's specific
requirements on dimensions and specifications.		 (2) Parameters will vary with different hardness and pressure.
