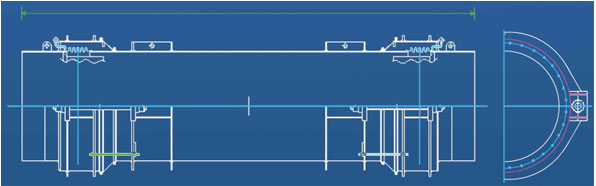

Overall Length [L]

DN	No. Of Convolution	The Overall Length, L[mm] For the Settlement Amount, Y [mm]
		Y=200	Y=500	Y=800
300	5	1800	3300	3600
350	5	1800	3500	3800
400	5	1800	3500	3800
450	5	1900	3500	4000
500	5	2000	3500	4200
600	5	2100	3600	4600
700	5	2100	4000	4600
800	5	2200	4400	5100
900	5	2300	4800	5500
1000	5	2600	4800	5900
1200	5	2800	4900	6500
1350	5	3100	5400	6500
1500	5	3200	5400	6500
1800	5	3400	5800	7200
2000	5	3500	6200	7800
2300	5	3500	6200	8000
