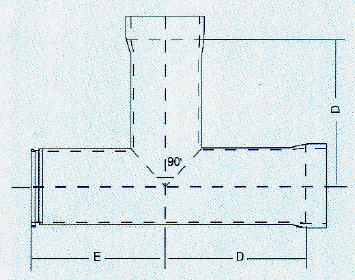

1. 900 T - Joint Pipe Fitting Size Nominal Internal Diameter ( ID )




Internal Diameter ( ID )
mm
D
mm
E
mm
  Internal Diameter ( ID )
mm
D
mm
E
mm
200
381
762

250
406
813
300
432
864

350
457
914
400
483
965

450
508
1016
500
533
1067

600
610
1219
700
648
1295

800
724
1448
900
762
1524

1000
800
1600
1100
902
1803

1200
940
1880
1400
1016
2032

1500
1092
2184
1600
1194
2388

1800
1270
2540
2000
1422
2845

2300
1524
3048
2400
1600
3201

2500
1676
3353
2600
1763
3505



Note:-------------------------------------------------------------------------------------------------------------------------

(1) Types of Connections and Requirements

-Tapered Socket

- Socket Joint Adhesive Bond

- Connection via External Layer

- Flange Connection

- Rubber O Ring

(2) Design and manufacture can be carried out according to customers specific requirements on dimensions and specifications.
