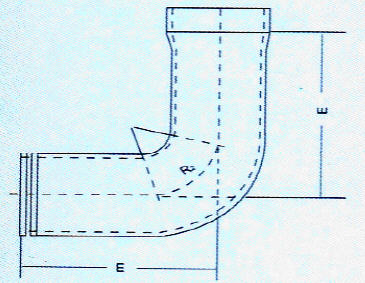

3. 900 Pipe Fitting Size - Nominal Internal Diameter ( ID )




Pipe Internal Diameter ( ID )
mm
E
mm
R2 (45°)
mm
  Pipe Internal Diameter ( ID )
mm
E
mm
R2 (45°)
mm
200
660
305

250
724
381
300
787
457

350
876
533
400
940
610

450
1029
686
500
1029
762

600
1219
914
700
1308
1029

800
1549
1257
900
1638
1372

1000
1778
1486
1150
1969
1715

1200
2070
1829
1400
2286
2057

1500
2489
2286
1700
2705
2515

1800
2921
2743
2000
3340
3200

2200
3556
3429
2400
3772
3658

2500
3988
3886
2600
4204
4115



Note:-------------------------------------------------------------------------------------------------------------------------

(1) Design and manufacture can be carried out according to customers specific requirements on dimensions and specifications.
